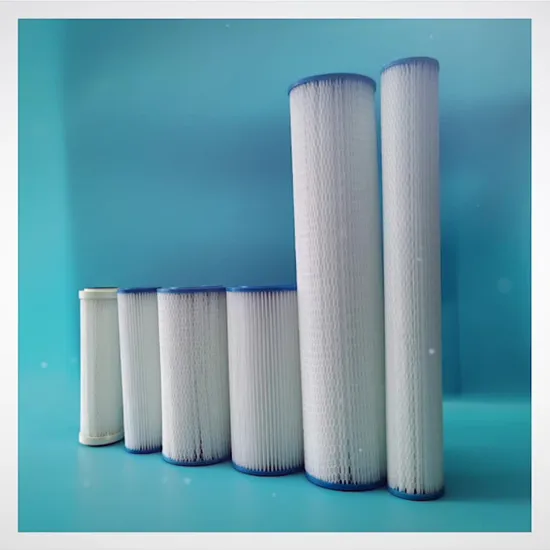

Depth PP Spun Melt Blown Filter Element

Basic Info.

Model NO.	CPPX
Filter Connector	DOE, 222, 226, Flat, Fin
Filtration Grade	PRE Filter
Construction	3-Layer
Test	Meet FDA 21 CFR 177.1520 and EU Standard
Inner Core	None, PP
Micron Rating	1um~100um
Transport Package	Export Standard Packing
Specification	5"-50"
Trademark	Filterek, OEM
Origin	China
HS Code	8421991000
Production Capacity	5000000pieces/Year

Packaging & Delivery

Package Size 500.00cm * 500.00cm * 500.00cm Package Gross Weight 100.000kg

Product Description

PRODUCT PARAMETERS

Material	Polypropylene
Core	None, Polypropylene
Surface	Deep Groove
Endcap	DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin
Sealing Material	BUNA, EPDM, Silicon, Viton
Inner Diameter	11mm ~ 98mm
Outer Diameter	26mm ~ 160mm
Micron Rating	1um ~ 100um
Length	5" ~ 50"

Product Code	Description	Length	Micron	Efficiency	Change-outPressure Max.	Filtration Type	Max. OperatingTemperature
CPPX	Grooved finish, none core	10~40"	1~100μm	Absolute	0.35 MPa	Depth	80o[email protected]

Comparing to standard PP melt-blown cartridges, CPPX Cartridges' Grooved Finishing increasedthe cartridge filter surface area by 60%, and flow rate by 20%, greatly improved dirt holding capacityas well as operating efficiency.Singed inner core surface, singed exterior treatment to prevent loose fiber migration. Continuouslength is available. Graded pore depth filter media type. No core lining required.
Features
Micron range: 1,5,10,25,50,75,100 micron.Length: Log made of continuous length. 10~40" normal length. Custom cut available.Efficiency: Absolute rating, 90% contaminant particle retention efficiency with a single pass.Media grade: Exclusively FDA compliant media, no silicon and other types of contamination.High flow rate, low pressure dropLarge contaminant retention capacity, extended service life.Optimum replacing pressure differential 0.15MPa, Max. 0.25MPaBroad chemical compatibilities.
Applications
Pre-filter of drinking water systemPre-filter of R.O system and others water systemOil removal industryFood and beverages industryPhotographic industryPharmacy industryElectroplating, etching and image development processes in PCB industryFiltration of electroplating fluid in conventional electroplating industryTrap filter of DI & RO water filtration system for industry
FAQ1 What is the filtration effectiveness? 99%-99.99%2 What kind of terms and payment do you accept? Usually T/T3: I am a small business owner, Can I buy from you? Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together. 4:Q: How should I place an order? Please kindly click" send inquiry" or "contact supplier", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection. 5. Q: What is your general delivery time? Answer: Generally 20-30 days
